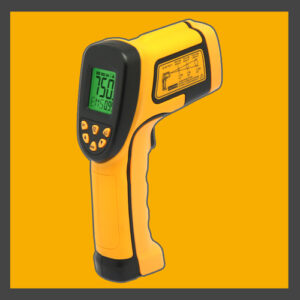

AS852B IR Thermometer
Description
The most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects ( i.e., rollers, moving machinery, or a conveyor belt), or where non-contact measurements are required because of contamination or hazardous reasons (such as high voltage), where distances are too great, or where the temperatures to be measured are too high for thermocouples or other contact sensors.
Manufacturer Specifications:
Features
Low temperature products based on the principle of infrared sensing and optical. Infrared thermometer can measure the surface temperature of objects from a distance. Compared with the traditional contact thermometer,It has the advantages of fast
SPECIFICATIONS | |
Temperature Range | -50℃~750℃(-58℉~1292℉) |
Accuracy | ±1.5%or±1.5℃ |
Distance Spot Ratio | 12:1 |
Emissivity | 0.10~1.00 adjustable |
Resolution | 0.1℃0.1℉(<1000℃) |
Wavelength & Response Time | (8-14)um&500ms |
Repeatability | ±1%or±1℃ |
℃/℉ Selection | √ |
Data Hold and Store Function | √ |
Laser Target Pointer and Backlight Selection | √ |
Max/Min/Avg/Difference Function | √ |
High&Low Temperature Alarm Setup | √ |
PACKING INFORMATION | |
Power | 9V DC battery |
Product Net Weight | 258g |
Product Size | 183*126*55mm |
Packing Style | Gift box |
Standard Quantity Per Carton | 40PCS |
Standard Carton Size | 52.5*40.0*49.0cm |
Standard Carton Gross Weight | 12.5KG |
