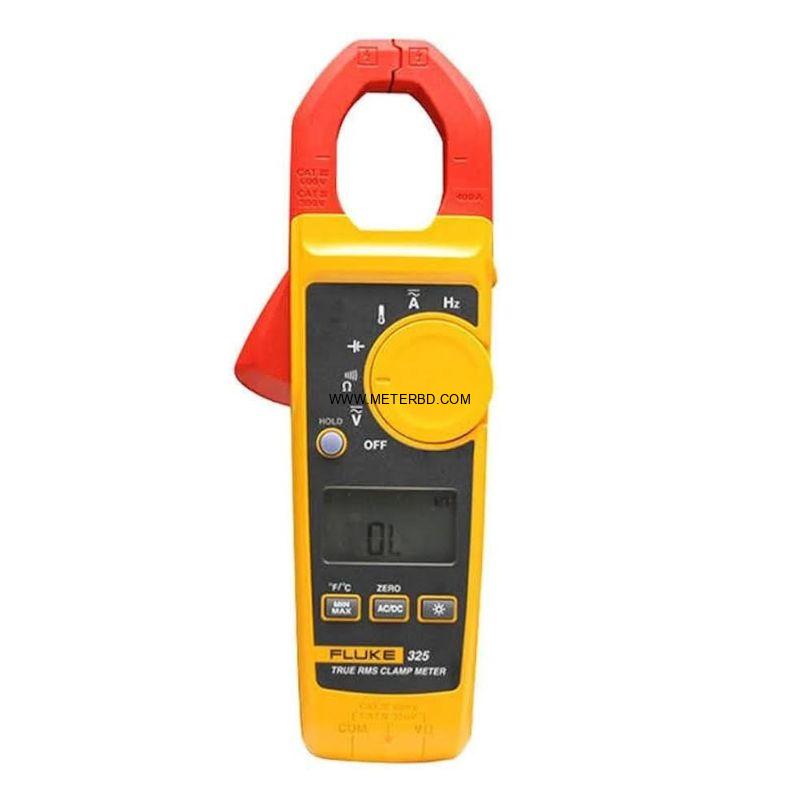

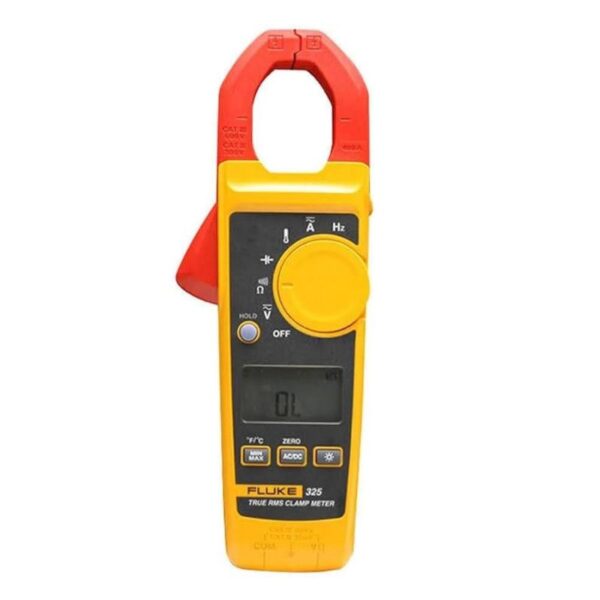

Fluke Model: 325 ac/dc Digital Clamp Meter

Description

Fluke Model: 325 ac/dc Digital Clamp Meter

Specifications: Fluke 325 True RMS Clamp Meter
Specifications
AC current Range 40.00 A / 400.0 A
Accuracy 2% ± 5 digits (45 Hz to 65 Hz)
2.5% ± 5 digits (65 Hz to 400 Hz)
DC current Range 40.00 A / 400.0 A
Accuracy 2% ± 5 digits
AC voltage Range 600.0 V
Accuracy 1.5% ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0% ± 5 digits
Resistance Range 400.0 Ω / 4000 Ω / 40.00 kΩ
Accuracy 1.0% ± 5 digits
Continuity ≤ 30 Ω
Capacitance

0 to 100.0 μF / 100μF to 1000 μF
Frequency 5.0 Hz to 500.0 Hz
AC response True-RMS
Backlight Yes
Data hold Yes
Contact temperature -10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max Yes
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 283 g
Category rating CAT III 600 V
CAT IV 300 V
