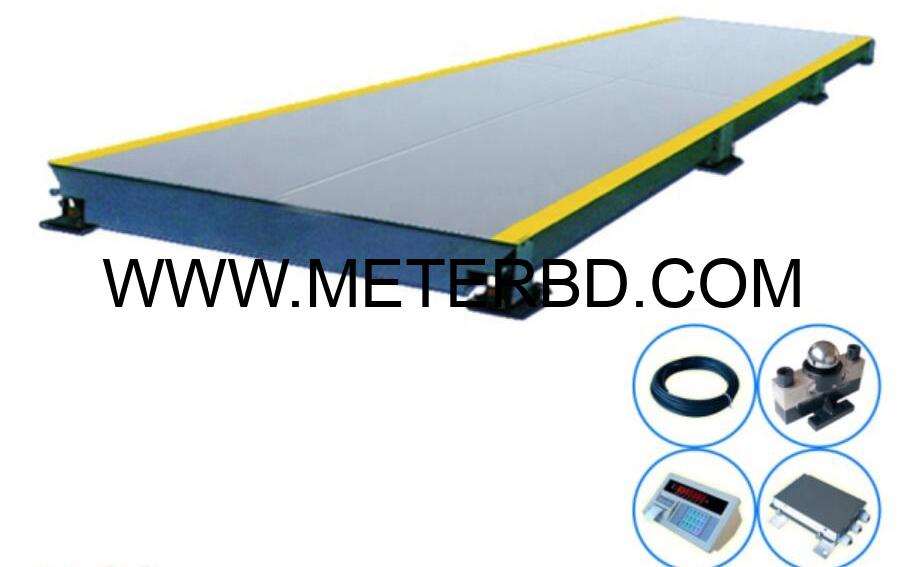

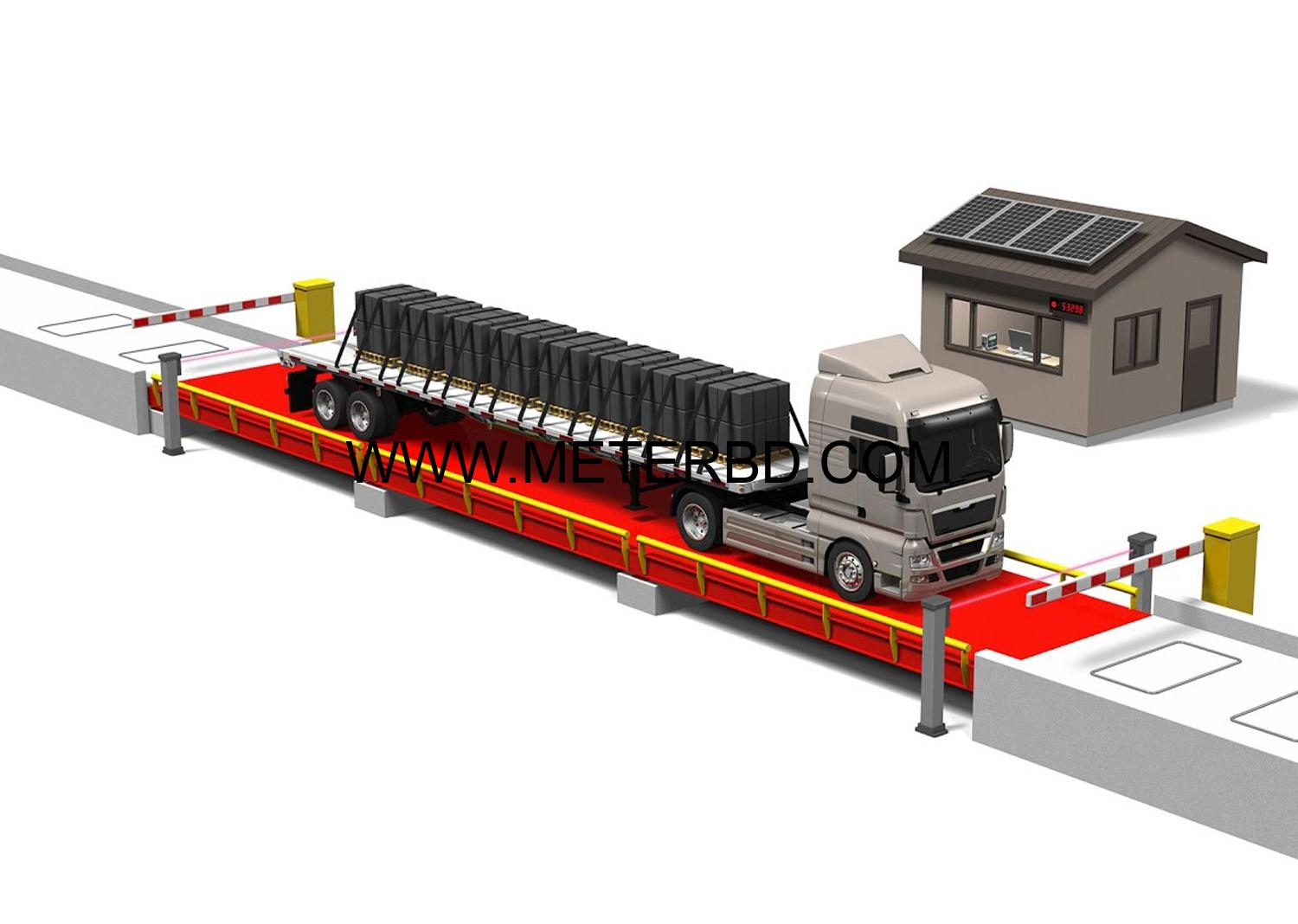

40 Ton Industrial Truck Scale

৳ 0

  • Brand : Yaohua
  • Origin : China
  • Platform size : (3X7)Meter
  • Maximum weight : 40 Ton
  • Accuracy : 10kg
  • Capacity: 10T-150T

Name: Truck scale
Capacity: 10T-150T
Model: SCS-TB (single, dual, three, four sections)
*SCS Analog / Digital Modular Full-electronic Truck Scale Series
*SCS truck scale have been tested with heavy-load for a long time and are optimized
*gradually. Their main beams and auxiliary beams are made of rigid section-steels like I-steel, U-steel, etc. High quality steel plates are selected and used for its platform, and its scale body is reasonably pieced into closed box-type frame. While welding, we use the special technique and clamps, precision measure technology of space positioning and advanced weld-technic, so as to ensure the level degree of large area, the space geometry-dimension and the rational distribution of weld stress. All the main mechanical capacity is largely strengthened, from the longitudinal anti-bending and horizontal anti-torque capability of its scale body to the part compressive-rigidity of its platform plate.
*Its surface layer is especially finished: Firstly its scale body is strictly processed with antirust and oxide-layer dislodging, secondly the managed surface is sprayed twice with the quality epoxy and rich-zinc antirust paint, then antirust-paint layer is sprayed with orange-veins acrylic acid polyurethane that is usually used in shipbuilding industry. So the property of abrasion, anti-press, anti-aging and antirust is enormously improved.
Detail file:
* Accuracy class: OIML III
* Weighing range: 10-150t
* Length of platform assembly: 6-24m
* Platform width: 3/3.4m
* Safety overload: 130% Max
* Max transmitting distance of analog signal: 100m
* Max transmitting distance of digital signal: 1000m
* Operating power supply: 240/220/110VAC, 50/60Hz
* Relative humidity: <95%
* Working temperature: -10-+40
