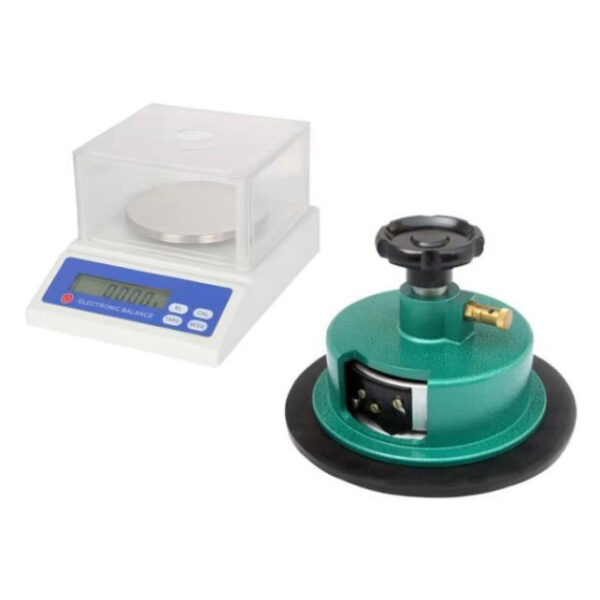

GSM Cutter & Balance Package -2

GSM Cutter AND Balance Package – 2
৳ 8,500
In Stock
  • Fabric cutting area : 100cm2
  • Minimum weight : 0.01g
  • Accuracy : 0.01g
  • Maximum weight : 200g

This product has been added to 56 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Delivered Today (In Dhaka City Corporation Area Only)
  • Return You must pay shipping costs,
  • Pick up at Meter Bd Solutions
  • Customer service hours are 8 a.m. to 6 p.m. (Fridays Close)
Category:
Tags: , ,

Description

GSM Cutter & Balence  Package-(2)

GSM Cutter Balance

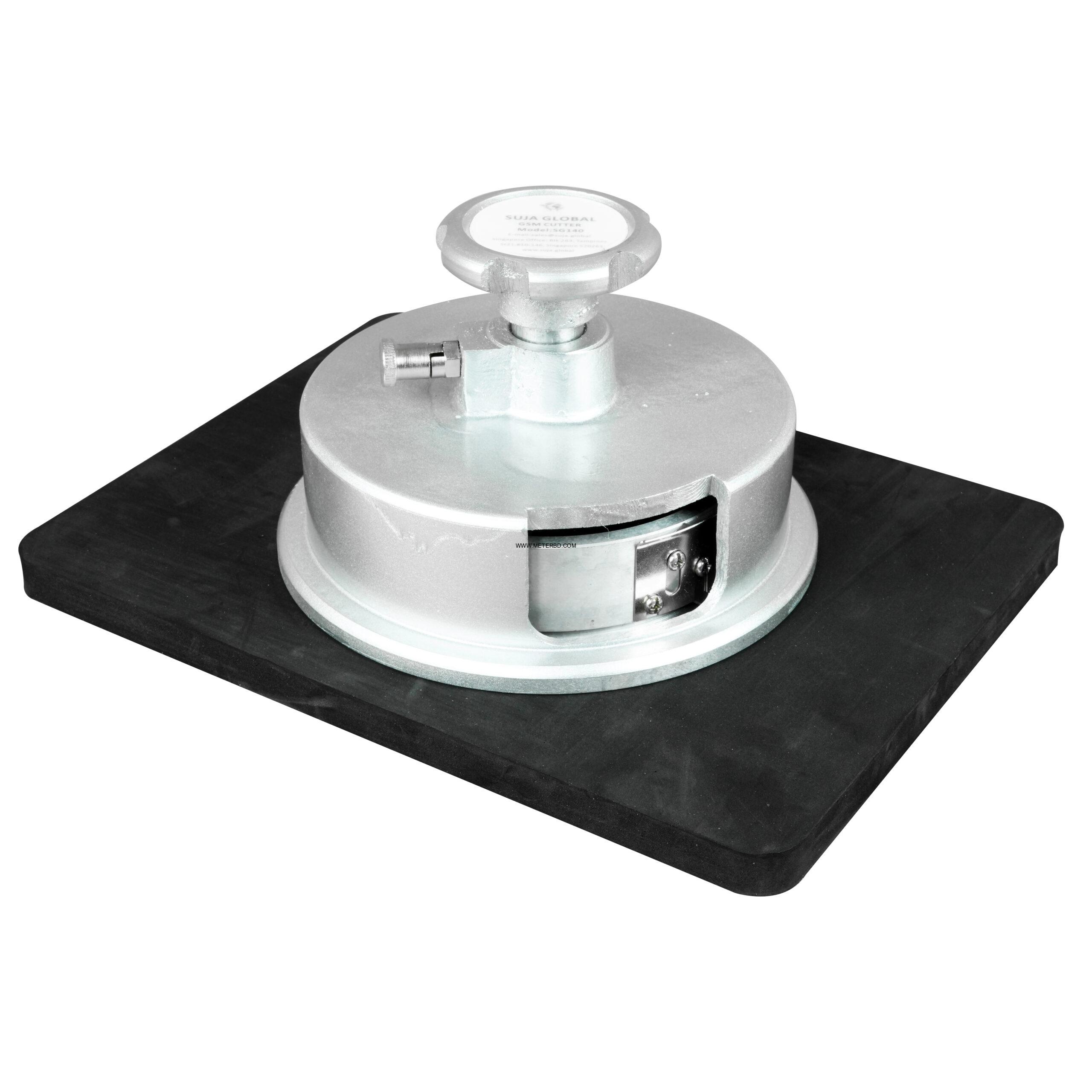

CHINA GSM CUTTER is an economical equipment to determine the GSM of the fabric (Woven, Non Woven or Knitted). GSM Round Cutter can be used to cut virtually any type of material including film, foam, carpet, paper and board.

Equipment

CHINA GSM CUTTER main body is completely made of aluminum casting with Locking (Catch Lock) Mechanism for Safety. The equipment has a set of four replaceable reversible blades i.e. all the four sides of the blades can be used. FourSpecial grade, Grey-cutting pads are provided to support while cutting the sample. The equipment is meticulously finished with metallic Brown paint.

Salient Features
Economical equipment to determine GSM (Grams per square meter) of any type of fabrics.
Good grade of aluminum used in main body for lightweight, robustness & resilience.
Stainless steel blade holders for lifelong excellent operations.
Supplied with rubberized foam cutting pad for smooth cutting & long life of the blades.



Technical Specification
Size of the Sample Dia. to be cut : 100 cm2
Cutting Blades : Reversible i.e. can be used from all the four sides.
Movement of hand wheel : ¼ Round to cut a sample
No. of Cutting Pads : 2 No.
Size of the gray cutting pads : 215 (L) x 215 (W) x 22 (H) mm
Overall Dimensions of the unit : 215 (D) x 130 (H) mm
Net Weight of the unit : 2.08 Kg. / Gross Weight :- 3.5 kg



Accessories
Main Unit : 01 Nos.
Special Grade-Cutting Pads



Related Standards
ASTM D 3776 / 2646 – 96
ISO 3801
BS 3424 / 2471
BSEN 12127

GSM weight Blance

Built-in four display units g, g/m2, oz, oz/yd2
Max. Capacity 200g x 0.01g, 20,000g/m2 x 1g/m2, 7 oz x 0.0005
Schröder Fabric Weight Balance

Specifications:

Built-in four display units g, g/m2, oz, oz/yd2
Max. Capacity 200g x 0.01g, 20,000g/m2 x 1g/m2, 7 oz x 0.0005oz, 590 oz/yd2 x 0.05oz/yd2
Platform Size Diameter 100mm (Round)
Completed With Plastic Wind Shield
Power Supply 12 VAC ~150mA Adapter or 6 x AA Batteries
