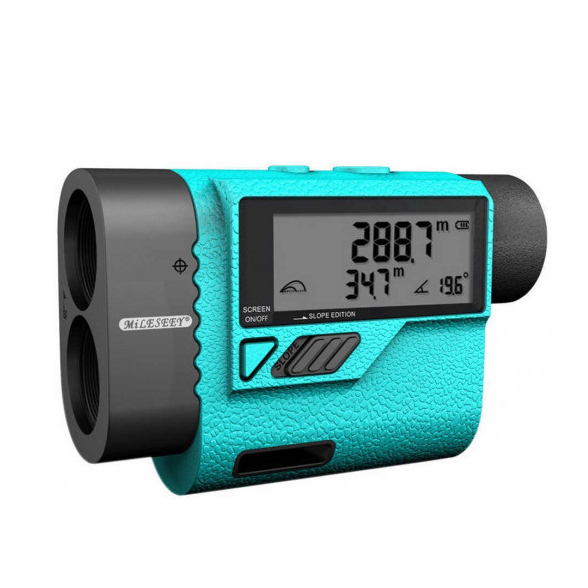

MileSeey PF3S Telescope Laser Distance

Description

Laser Technology MileSeey laser rangefinders are lightweight, high-precision instruments capable of measuring slope distance, inclination, and azimuth to within a foot over long-range, and can calculate horizontal and vertical distances, height, and line values. It is used for Land Surveying and Mapping with Laser Rangefinder.

When the swing distance is too far to measure the distance and swing angle, the golf ballistic compensation mode is enabled, and the ballistic compensation distance and angle are quickly calculated to provide accurate data for golfers.





Features of MileSeey PF3S Telescope Laser Distance Measuring Meter Rangefinder Range 600 Meter

• Point to point measurement
• Golf ballistic compensation mode
• Golf ballistic scanning mode
• Ranging mode with height measuring angle
• Two-point altimetry mode
• Speed measurement mode
• Flagpole lock mode
• Non-toxic environmentally friendly materials
• Screen switch free control for saving battery life
• TOF optical time flight technology





Specifications of MileSeey PF3S Telescope Laser Distance Measuring Meter Rangefinder Range 600 Meter

Model: PF3S

Brand: MileSeey

Origin: China

Range: 600 meter

Battery: 3 V, CR2  x  1

Measuring unit: m, Yd

Accuracy: ± 5 m

Angle range: -45 ° ~ 45 ° Angle range with

Tilt adjustment : -20 ° ~ 20 °

Angle accuracy: ± 1 °

Laser wavelength: 905nm

Eye safety: FDA (CFR21)

Field of view: 7 °

Magnification: 6x

0 objective Lens diameter: 22mm

Lens diameter of the lens: 16mm

Output pupil diameter: 3.7mm

Diopter: ± 5D

Diopter adjustment: lens adjustment

Operating temperature: 0PC ~ + 40 ° c

Tripod screw hole: yes

Vertical height (between two points: yes

Continuous measurement: yes

Angle measurement: yes

Angle switch: yes

Golf tilt adjusted: yes

Speed ​​measurement: yes

External display power switch: yes

Speed ​​range: 18 ~ 300 km / h

LCD: transitive tif LCD

Size: (118  x  79  x  42)mm

Weight (battery): 223g

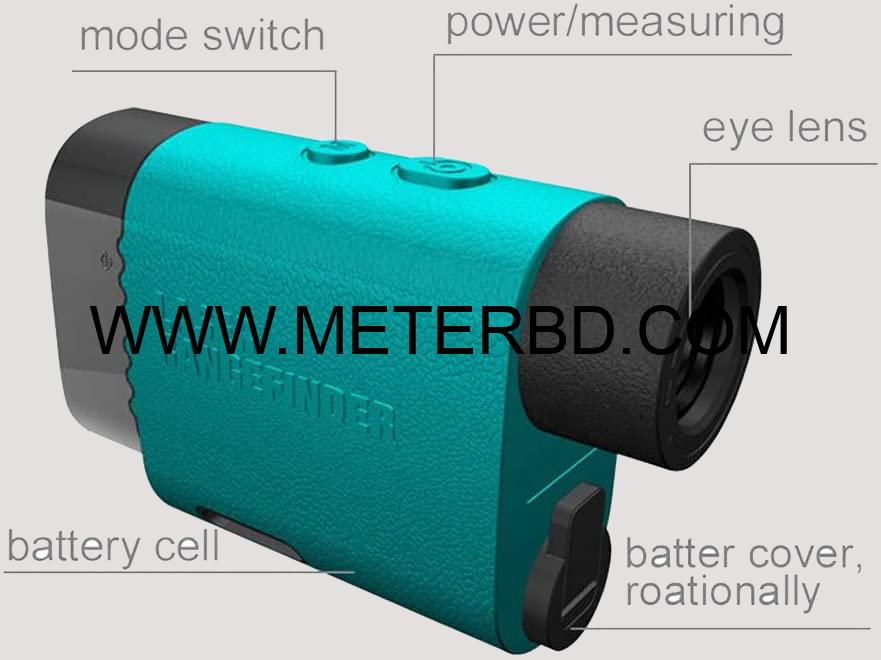

How to operate/ Instructions of MileSeey PF3S Telescope Laser Distance Measuring Meter Rangefinder Range 600 Meter

• Space Arbitrary Two-Point Ranging Function: Short press m to switch to any two-point ranging mode, aim the aiming target at the first point, press the measurement button to get the first measured distance, move to the second point, press the measurement button to get the second The distance calculation result and angle between the two points are displayed on the screen.

(When measuring, keep the standing position unchanged.)

• Golf Ballistic Compensation Mode: Short press the measurement button b for a single measurement, long-press the measurement button b to continuously measure the aiming measurement target (such as the flagpole), short press the measurement button, the measured distance, ballistic distance, and angle data can be displayed on the screen.

(the range of the golf ball compensation angle: -20°<a<20)

• Golf Ballistic Scanning Mode: Aim at the target to be measured, a short button (the flagpole starts to flash) slowly scans back and forth on both sides of the target. After 1.5 seconds, the flagpole stops flashing, and the displayed distance is the distance of the target.

(The flagpole lock flag will appear only in the golf ballistic scanning mode)

Measuring distance + ballistic distance + angle of measurement (scan mode)



• Ranging Mode With Height Measuring Angle: Short press the measurement button b for a single measurement. Press and hold the measurement button b to continuously measure the aiming measurement target. Short press the measurement button b to get the measured distance and the height and angle of the measurement target to the horizontal plane.

(measuring angle: soil 90°)

Measuring distance + measuring height + measuring angle



• Two-Point Altimetry Mode: Short press M to switch to the two-point altimetry mode, aim the aiming target at the first point, press to get the first measured distance, move to the second point, press to measure the second measured distance, two points The height between them is displayed at the top of the screen.

(The height between two points must be the vertical height on the same plane)



• Speed Measurement Mode: After aiming at the measurement target, press the measurement button shortly and follow the movement of the measured object to quickly obtain the movement speed of the object.

(a must be less than 10°; the smaller the angle, the higher the accuracy.)



• Flagpole Lock Mode (Close-Up Priority): Align the target point B to the target, and measure the straight line distance from point A to point B by pressing the measurement.

(This mode can only be used after closing the angle, a must be less than 10; the smaller the angle, the higher the accuracy.)



Packaging Info of MileSeey PF3S Telescope Laser Distance Measuring Meter Rangefinder Range 1500 Meter

• 1 x HD laser Rangefinder
• 1 x CR2 battery
• 1 x lanyard
• 1 x wiping cloth
• 1 x carrying case
• 1 x user manual
