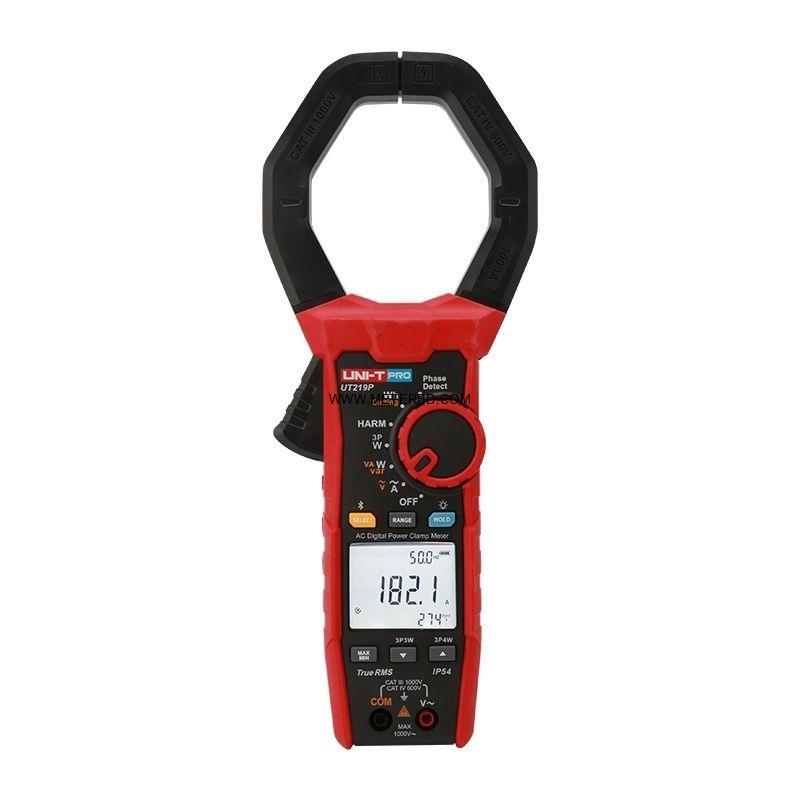

UIN-T UT219P AC Digital Power Clamp Meter Price in BD

Description

UIN-T UT219P AC Digital Power Clamp Meter Price in BD

Specifications of UT219P AC Digital Power Clamp Meter

Specifications Range Accuracy
AC current (A) 1000A ±(1.5%+3)
AC voltage (V) 1000V ±（0.7%＋3）
Power (single phase) 1000KW ±（1.7%+5）
Power (3-phase & 3-wires) 1732KW
Power (3-phase & 4-wires) 3000KW
Power frequency (Hz) 15Hz～1000Hz ±（0.3%+3）
Phase angle (-180°~ 179.9°) 15Hz～40Hz ±5°
40Hz～70Hz ±3°
70Hz～1000Hz ±5°
Power factor -1 ~ 1 based on the Accuracy
of the Phase angle
Features
Jaw opening 75mm
Phase detection √(80V~1000V)
Positive and Negative
AC/DC PEAK measurement √
Harmonic measurement 32 times
Display mode LCD screen
4 kinds of results at the same time
Display count 9999
Bluetooth app √
True RMS √
Overload indication √
High voltage indication √
High voltage overload warning √
Low battery indication √
Data hold √
Auto power off Around 15 minutes
Max/Min √
Overvoltage category CAT III 1000V/CAT IV 600V
Certificate CE, UKCA, cETLus
